TECHNICAL SPECIFICATIONS

WIDTH: 9"

LENGTH: 14"

HEIGHT: 36" collapsed to 60" fully raised

LENS HEIGHT: Approx. 40" to 64"

TILT: +/- 15 degrees

WEIGHT: 30lbs.



MATERIALS:

B/BB Baltic Birch Ply

Aluminum "Grip Gobo Head" Lock Knobs

Steel hinges & fasteners

Formica panel covering rails

Brass 3/8"-16 threaded insert



FEATURES:

Slot on platform to attach dovetail or lock plate

Two shelves for storage (WxLxH - 8"x12"x10")

Fits block battery in base

3/8"-16 thread in base and tie-down to attach to Ass Wheels

Engraved height markers

1/4"-20 threads on face of box to attach additional accessories

Choice of Natural or Medium Walnut high-quality Danish oil stain

Choice of colored protective panel on inside of box

Choice of colored rubber matte for shelves

Custom engraving on request

Boxes with Wood, Red, and Blue protective panel options.

Natural Stain

Medium Walnut

Gray, red, and blue rubber mat options.

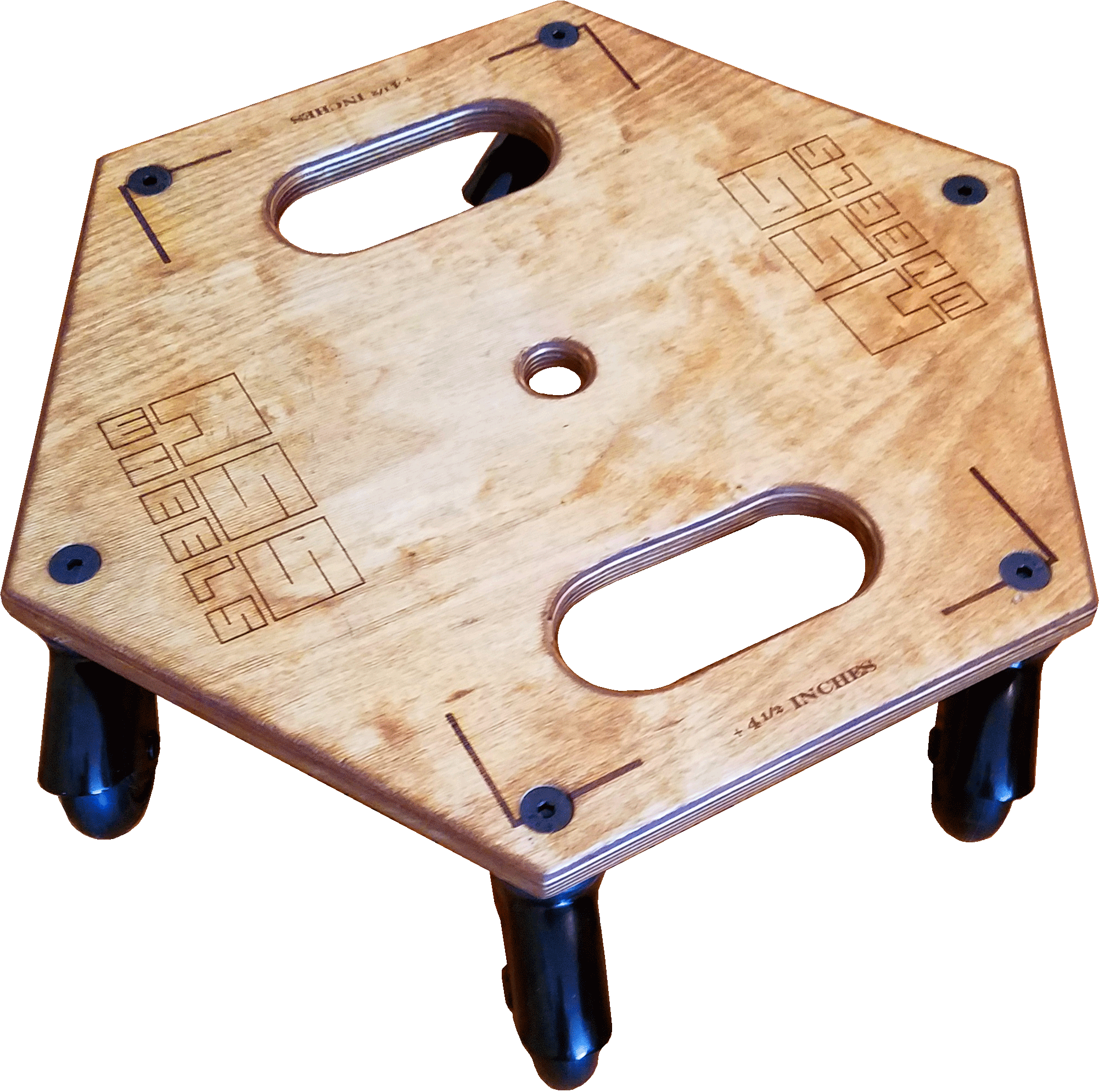

WIDTH: 16"

LENGTH: 18.5"

HEIGHT: 4.5"

WEIGHT: 3.75 lbs.



MATERIALS:

B/BB Baltic Birch Ply

6x Swivel Casters with non-marking wheels



FEATURES:

Supports 500 lbs of weight

Engraved marks for centering the Banana Box

CURRENT PROTOTYPE - SUBJECT TO CHANGE

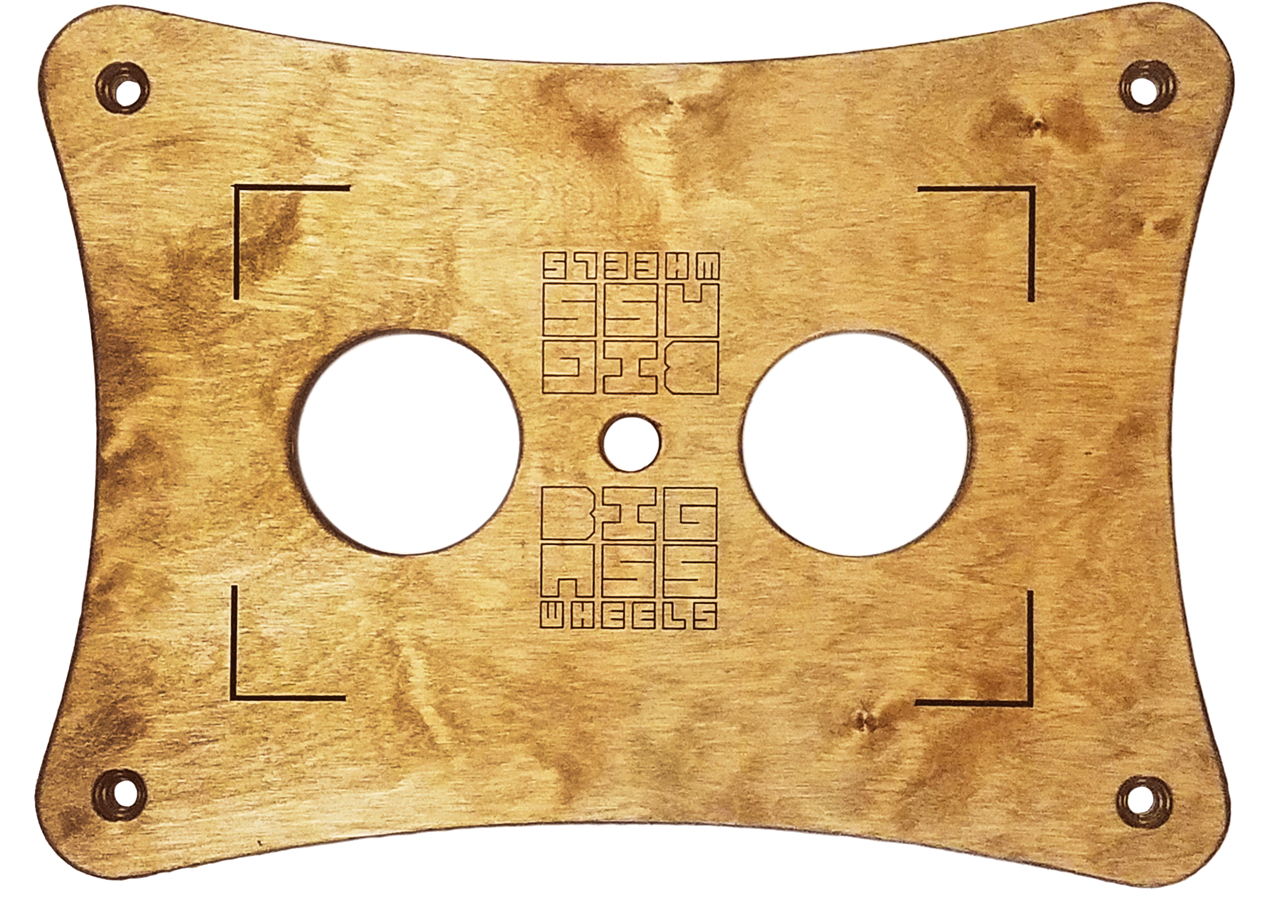

WIDTH: 15.5"

LENGTH: 21"

HEIGHT: approx. 8"

WEIGHT: TBD



MATERIALS:

B/BB Baltic Birch Ply

4x Swivel Casters with pneumatic tires & locks



FEATURES:

Supports 600 lbs of weight

Engraved marks for centering the Banana Box
